II40X 385V series surge protectors protect against surges affected by indirect lightning SPD

Name: II40X 385V series surge protectors protect against surges affected by indirect lightning SPD
Brand: Uchi
Price: 1 USD

Brand Name : Uchi

Model Number : OBV-SPD-385V

Certification : CE / SGS / ISO9001

Place of Origin : Dongguan China

MOQ : 200 piece

Price : Negotiate

Payment Terms : T/T, L/C, Western Union

Supply Ability : 60000 pieces per month

Delivery Time : 5-15 days after payment

Packaging Details : export package / Negotiate

Condition to work voltage(VDC) : 385Vac

In(8/20μs) : 20kA

Limp(8/20μs) : 40kA

Up : 1.5kV

Working temperature(C) : (-40℃~+85℃)

UC : 385Vac

Response time(ns) : 25ns

ISCW : 10kArms

Contact Now

II20X 375V series surge protectors protect against surges affected by indirect lightning and direct lightning

The main technical parameters
Model and specification U1-II20X

Uc(VAC)Maxi continuous operating voltage	1000,750,420,385,320,275,175,48Vac
Up(kV)Voltage protective level	3.5, 3.0, 1.8, 1.5, 1.5,1.5, 1.3, 0.6 kV
(8/20μs)Imax(kA)Maxi discharging current	400kA
(8/20μs)In(kA)Nominal discharging current	20kA
response time	≤25ns
Signal deterioration indication	off-work；on-replace
Housing Material	Red thermoplastic material
Housing self-extinguishing class	UL94_V0
Temperature range	-40℃～+80℃
humidity range	5%～95%
Elevational	≤3000m
Method of connecting wire	multiple(Connect In Parallel )
Thread Dimensions	1.5mm2～35mm2
Mounting method	35mm standard rail installation
IP(degree of protection of enclosure)	IP20

Product Features:
combination type SPD
The smallest size single phase surge protector of Iimp: 40KA ；
only 27mm width, save space;
Sealed metal air gap technology,high energy electronic trigger discharge gap, with the ability to block continuous flow
Low output residual；
fast response time (≤25ns);

II40X 385V series surge protectors protect against surges affected by indirect lightning SPD

The combination type SPD characteristics:

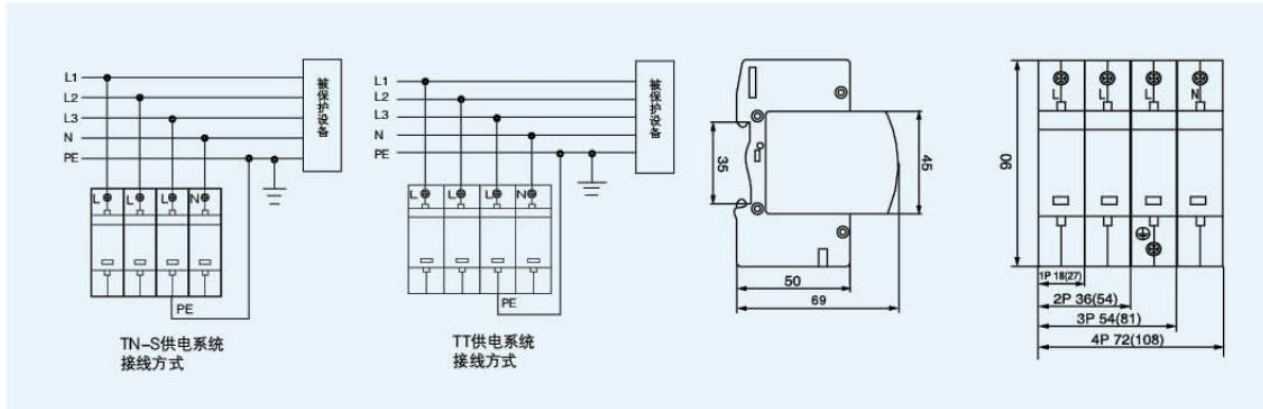

HDU1-II20X series Surge protector device (hereinafter referred to as SPD) is used for power supply systems such as IT, TT, TN-C, TN-S,TN-CS, etc. for low-voltage AC distribution systems, for indirect lightning and direct lightning or other A surge of transient overvoltage is protected. The SPD has a common mode (MC)and differential mode (MD) protection. The SPD complies with GB/T18802.1/EC61643-Il.
